ProgeCAD is the very powerful DWG/DXF-native 2D/3D CAD software application. ProgeCAD is probably the best cost-effective alternative to AutoCAD. This replacement is built for professional drafting. A great solution for AEC, MCAD and all generic CAD usage.
Stop spending hundreds each year on an annual subscription.

Whats New in progeCAD 2025 ?

• New engine based on IntelliCAD 12.1

• Increased speed of opening drawings containing many blocks or external references.

• Generative AI Drawing Translator. Powered by Generative AI, the new progeCAD text translator for drawings uses the translation engine by Google® AI to translate all or part of your drawing into any language. The translated texts do not change their nature, therefore the drawing remains normally compatible with all CAD-DWG software. It works on Text, Mtext, Block attributes, Mleader and Tables.

Advanced Blocks

• Transparently convert Dynamic Blocks to Advanced Blocks and moreover, using the block editor, you create and edit Advanced Blocks using parameters, actions, and visibility states as with AutoCAD® Dynamic Blocks. You can use it to modify any block reference and also make them parametric in size and shape. The contextual ribbon includes features to combine special grips and actions such as Move, Scale, Stretch, Rotate, Pattern or Mirror. You may, for example, create an Advanced Block which size can be dynamically adjusted with a grip that you can stretch.

Convert Dynamic blocks into Advanced blocks

• You can use dynamic blocks created with AutoCAD® as they are. They will keep their intelligence and parameters in progeCAD. When you edit (modify the Block definition) an existing AutoCAD® dynamic block, it will be automatically converted into an Advanced Block.

Using AutoCAD Dynamic Blocks in progeCAD

• progeCAD reads and uses AutoCAD dynamic blocks just like AutoCAD® does. When someone shares with you dynamic blocks created in AutoCAD®, they can be used inside progeCAD with the same set of interactivity functions, including modifying their shape, size, and configuration. After making interactivity changes and saving the drawing with progeCAD, the blocks are still seen as dynamic blocks back in AutoCAD®. When, however, you want to edit an AutoCAD® dynamic block with progeCAD Block Editor, it will be converted into an Advanced Block.

Using progeCAD Advanced Blocks in other CAD Programs

• Advanced blocks created with progeCAD can be read by other CAD programs, such as AutoCAD®, but only as simple blocks. When one of progeCAD Advanced blocks is modified in another program, it loses the interactivity that was specified with progeCAD. Fortunately, you can modify the rest of the drawing with another program without breaking the interactivity of Advanced Blocks. When you want to edit a progeCAD Advanced Block with the AutoCAD Block Editor, it is required to redefine grips and actions from scratch.

• New Express commands QBREAK (Intersection Quick Break) and EBREAK (Auto Intersection Quick Break). Trim all entities to the intersection of a cutting entity in a single operation using the quick trim command.

• Rubber sheeting. New functions for image editing (Raster Design). Use rubber sheeting when you want two or more different data sets from different sources to align geographically: for example, when stretching a new subdivision map into a preexisting parcel map. Rubber sheeting is a nonuniform adjustment of a data set based on the movement of known control points to new locations. For example, data collected by aerial survey may be inaccurate because of flight alignment and camera inaccuracies. By comparing these data with the accurate ground survey data, the aerial data can be stretched or rubber sheeted over the accurate data using control points and objects common to both data sets.

• New Express command CHBLOCKBASEPOINT (Change Block Base Point). Change the insertion point of the selected block and all its instances in the drawing without moving the geometry. Useful for correcting problems related to blocks with a very distant insertion point or for being able to change its reference point to manage different situations.

• New Express command INSERTPOINTSVALUES (Insert Point Coords). Write coordinate values near the selected point entities. It is possible to configure the data type that will be reported in text.

New 3D AEC Architectural module

• Compatible with AutoCAD®AEC Objects. The new AEC package allows you to draw 3D architectural elements with a two-dimensional view in plan and takes advantage of a whole series of new Architecture style commands. The drawn entities are now specific AEC elements editable and configurable via the Styles management. By default, it replaces our previous EasyArch architectural plugin which still remains available and can be activated with the variable AECMODE.

• Draw walls, doors, curtain walls, windows, stairs, and railings

• Draw slabs, roofs, or roof slabs

• Walls and Slabs can be created by direct conversion of 2D entities

• Multi-level manager to assign levels to AEC entities. Levels contain default settings for bottom and top elevations, wall height, on/off status, lock/unlock status, freeze/thaw status, offset, and other settings for walls and plane symbols

• Attach Roof and Ceiling plane symbols to walls and reference them while interactively creating roof and ceiling planes using the plane solve command

• AEC Styles manager: manage & customize AEC Styles for Walls, Doors, Windows, Curtain Walls and Curtain Wall Units, stairs and railings, and slabs

• AEC Family – imports AEC objects style from external fam or dwg files

Other New Features

• Improved Tables. New functions for managing cell border format.

• Commands preview. When using the Offset, Trim, and Extend commands, you can see a preview of the results.

• New Layers Manager Palette with some improvements. Change the columns visibility and restore the default display of columns.

• New DATAEXTRACTION with new functions and the ability to create dynamic tables inside the drawing that can be updated based on drawing changes.

• Xrefs and Blocks inside Xrefs extraction

• Advanced Blocks and Dynamic Blocks data extraction (DATAEXTRACTION only)

• AEC Objects data extraction

• Optional filter for Layouts (Paper Space) and Models

• Custom rename of Columns

• Customize Columns Order

• XLS and XLSx export supported

• Selectable styles for tables

• Extracted tables are dynamically linked to the drawing and automatically updated with drawing changes through the DATALINK functions

• New BIM Importer for Autodesk® Revit®. Direct import of Revit files (up to v. 2024) selecting the entire model or a specific View. BIM objects are placed on different layers selecting between two options:

• Layers based on entities

• Layers based on Level+Category

• If present, the appropriate materials will be associated with the imported entities.

• New Publish (optional: the PUBLISHMODE system variable allows you to use the new or previous version of the command).

• IFC Export. Create IFC from DWG with the new experimental IFCEXPORT and IFCEXPORTOPTIONS commands. It is possible to include .rvt, .ifc underlays, and AEC Objects when exporting to .ifc files. Specify the IFC4 or IFC4x3 schema when exporting to .ifc files and set display properties for AEC styles.

• Snap entities. Use the new Geometric Center snap to find the centroid of any closed polyline or spline. Previously it was managed automatically by the center snap with Arc, Circles, etc.

• New Printers in PDF via DWG to PDF.PC3 - more options and features. Also used with the PDF Export command.

• Drawing area. Improved handling of model space viewports. Click and drag the border of a Model Space viewport to resize it.

• Improved Quick Properties. With the customize user interface command specify what entity types and properties are visible in the Quick Properties pane.

• Splines improvements. Draw splines using control vertices and knot parameterization. Choose undo to erase the previously specified point. Choose join when using the edit spline command to combine a selected spline with other splines, lines, polylines, or arcs.

• New command LAYVPI for Layouts. Use the layer isolate viewports freeze command to freeze the layers of selected entities in all layout viewports except the current viewport.

Explorer Improvements

• Manage more visual style properties using the explore visual styles command

• Manage more layout settings using the explore layouts command

• Specify whether to freeze layers automatically in layouts that you create using the explore layers command

• Manage data links using the explore external references command

• Change the column order, the visibility of columns, and restore the default display of columns in all explorer panes

• New 3D command PROJECTGEOMETRY. Create a projection of lines, curves, or points on a three-dimensional solid, surface, or region using a direction you specify. You can project points, lines, arcs, circles, ellipses, 2d or 3d polylines, splines, and helices.

• .NET: Access many new .net classes, methods, and properties.

• ARX API: the new API framework compatible with AutoCAD® ARX Classes which makes extremely easier the porting of AutoCAD® applications to progeCAD.

• Improved command CONVTONURBS. Convert surfaces and 3d solids to nurbs surfaces. You can convert surfaces that are created using the convert to surface command.

• New command TFRAMES. You can display or hide the frames of all images and wipeouts. This command controls the settings of the IMAGEFRAME and WIPEOUTFRAME system variables.

• NLM licenses Migration mode. It allows you to easily switch NLM Server from one server to another.

Other Improvements

• Thousands of bug fixes

• Drag a .dwg file from Windows File Explorer to a tool palette to add it as a block on the tool palette

• Right-click a drawing file tab to access window tools quickly

• Load and save print stamp setting (.pss) files

• Use print preview for .pc3 printers

• Click the down arrow at the right end of the layout tab row in the drawing window to display and choose from a list of layout tabs

• Toggle the display of the printable area boundary in paper space

• Use diesel expressions when customizing the ribbon

• 3D Draw. Use the show cv and hide cv commands to display or hide the control vertices of selected nurbs surfaces and curves

• New command RESETBLOCK - Resets Advanced or Dynamic block references to the default values

• New XREFOSNAP variable that allows you to disable object snaps on entities contained in external references. By default, it is enabled.

• ProgeCAD brochure :
• ProgeCAD Sample Customers :

ProgeCAD Professional is available with different licensing solutions:

SL - Single license
can be registered on one PC at a time (license can be moved onto another PC)


NLM - Network Licenses
can be installed on unlimited PCs in the network and used at the same time by several users according to the purchased licenses (1 NLM=1 concurrent user). The number of network floating licenses determines how many users can work with the product concurrently, so in accordance with this the necessary number of licenses should be acquired.


License Take-Away: NLM licenses can be temporarily moved onto a laptop or a remote PC to be used offline. Max flexibility!

If you need NLM (Network edition) see ProgeCAD Prof English NLM or if you would like to buy an upgrade for your existing progeCAD license then ProgeCAD SLM Upgrade

ProgeCAD v AutoCAD v Autocad LT Comparison

Feature	progeCAD	Full	LT
Native DWG	X	X	X
DWG for AutoCAD version 2.5 to 2022	X
Classic Toolbars and Ribbon GUI support	X	X	X
Ribbon Contextual	X	X	X
CUI menu support	X	X	X
3D PDF Export	X
EasyArch 3D (Architectural plugin)	X
Revit Import	X
IFC (BIM) Import	X
AEC, Civil, GeoMaps and Mechanical Objects Visualization	X	X	X

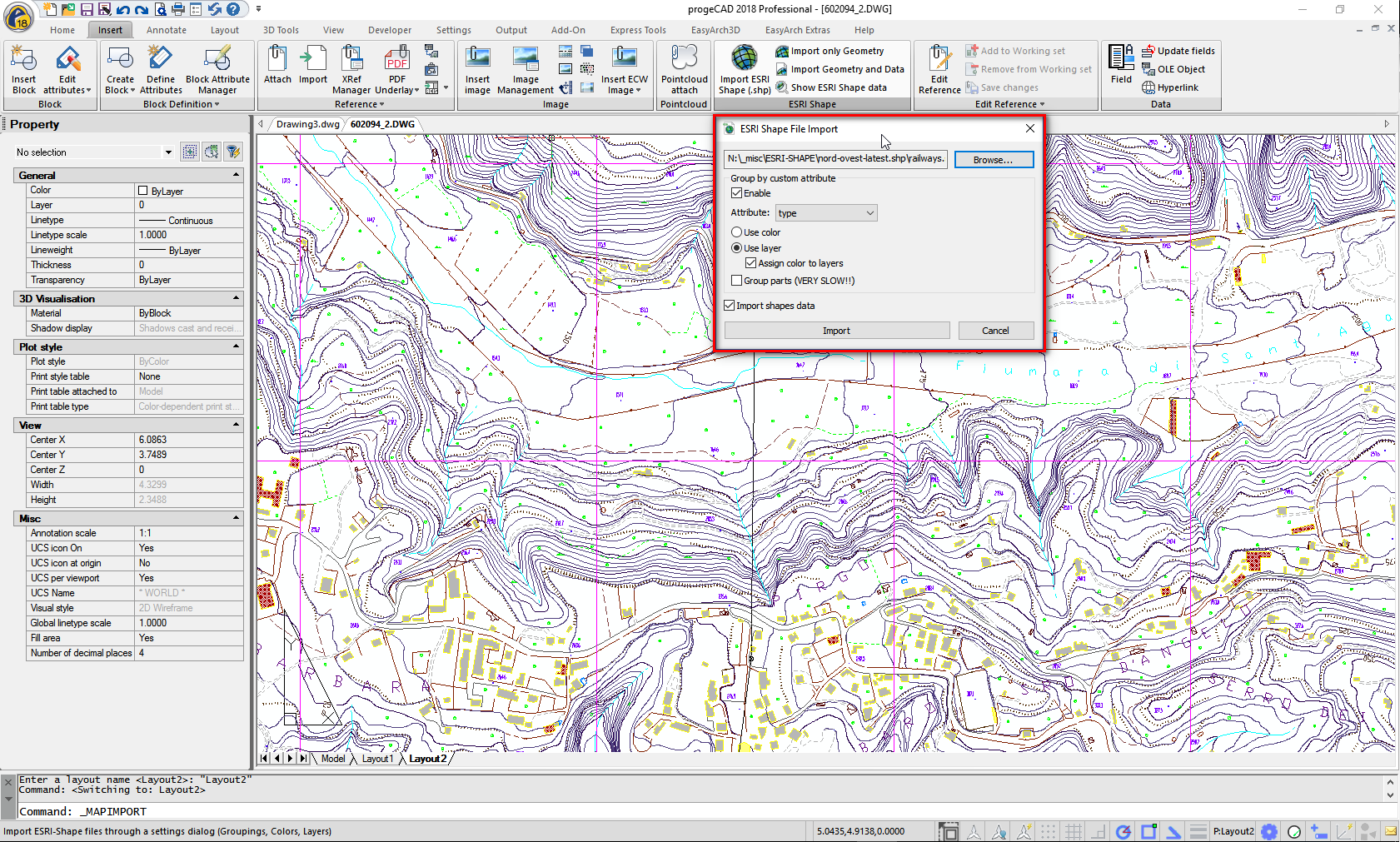

ESRI-SHAPE Importer (.shp) graphic & data	X
Geolocation with interactive background map from Microsoft Bing	X	X	X
STEP/IGES import/export	X	X
SolidWorks Import	X
Tool Palettes	X	X	X
Properties palette	X	X	X
Superhatch	X	X
Quick Properties Palette	X	X	X
Construction Lines	X	X	X
AddSelected	X	X	X
Drawing recovery	X	X	X
Perspective image correction	X
In-Place Text Editor	X	X	X
Slope Tool (topographic)	X
Autosez Tool (Automatic creation of Surface profiles)	X
WorkSpaces Support	X	X	X
Default Layer for Hatches and Dimensions	X	X	X
Fade for Xref, Locked Layer and Refedit	X	X	X
Dynamic Input	X	X	X
Export to DWF	X	X	X
Integrated Cloud Service	X	X	X
Tables creation/editing	X	X	X
Tables with Styles	X	X	X
Formulas in Tables	X	X	X
Numbered  Markers (BubblesBaloons)	X
Associative Array	X	X	X
User Profiles support	X	X	X
PC3 Support	X	X	X
Annotative Objects	X	X	X
QRCODE	X
AreaText (Insert the area text of a boundary area)	X
Publish (Batch Plot)	X	X	X
AutoPublish	X	X
SheetSets	X	X	X
Multiple Paper Spaces (layouts)	X	X	X
AutoCAD 3D surface commands	X	X
ACIS viewing	X	X	X
Full ACIS modeling & editing	X	X
3D Print	X	X
Flatshot	X	X
Loft and Helix commands	X	X
XRef Manager	X	X	X
Xref Notify	X	X	X
MTEXT support via external editor	X	X	X
Hatch editing	X	X	X
Open/Import Microstation files (.dgn, .dgnlib, .rdl, .cel)	X	X	X
Raster Image Display (image management)	X	X	X
Image polygonal clip	X	X	X

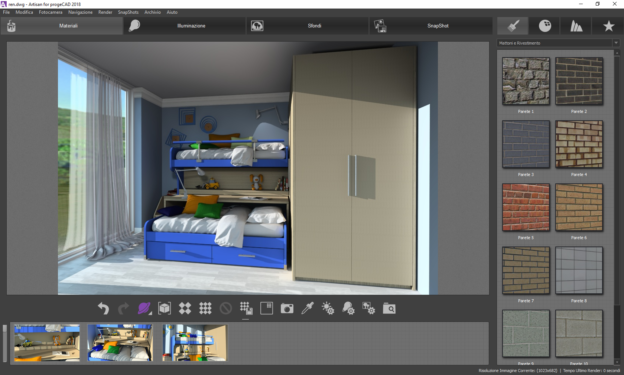

Rendering	X	X
Image menu	X	X	X
CTB color table files / STB style table files	X	X	X
PointCloud Import	X	X
Export to Google Earth	X	X	X
AutoCAD Command Line	X	X	X
AutoCAD menu and script files	X	X	X
Explorer for managing layers, blocks, line types	X	X	X
TIN surface from points	X
Apparent & Extended intersection snap	X	X	X
Polar Tracking	X	X	X
Selection Cycling	X	X	X
Express Tools	X	X	X
Block Editor (BEDIT)	X	X	X
Refedit ( Edit locally individual objects within a Block)	X	X	X
2D/3D Wood Details, Steel and Profiles Standards (Imperial/Metric)	X
Layer Manager ( Save and Restore Layers configurations)	X	X	X
ETrack	X	X	X
Digital Signature to DWG	X	X	X
Visual Menu Customization	X	X	X
ActiveX, including in-place editing	X	X
Solutions Development System (IRX - similar to ARX - SDS/ADS C++)	X	X
AutoLISP (including DCL)	X	X
Script Recorder	X	X
COM support	X	X
.NET support	X	X
Visual Basic for Applications (VBA)	X	X
External VBA file loading (multiple .vbi)	X	X
PDF to DWG (convert PDF files to DWG files)	X	X	X
Convert DWF/DWFx to DWG,DXF,DAE,3DS,DGN	X	X	X
JPG print	X	X	X
PDF and PDF/A print	X	X	X
STL and Collada (DAE) Export	X	X
PDF, DWF, DGN Underlay	X	X	X
BetterWMF Integration	X	X
Raster to Vector module	X
iCADLib libraries blocks manager	X
Block libraries (Construction, Architectural, ANSI-ISO and DIN-ISO Mechanics, ANSI and IEC Electrical, Electronic, Steel Profiles, Furniture, Kitchen)	X
Parametric 2D Library	X
Traceparts, Cadenas and BIM&CO integration	X
True Type Font	X	X	X
Arc Aligned Text	X	X
Quick Dimension	X	X	X
eTransmit	X	X	X
Send To Skype	X
Start Page	X	X	X
Drawing Fields	X	X	X
Find & Replace	X	X	X
Native ECW,Jpeg 2000, MrSID support	X
True color and Industrial Standard Color Books support	X	X	X
Wipeout	X	X	X

What are the minimum system requirements for progeCAD?

OPERATING SYSTEM:
Windows 7, Windows 8, Windows 8.1 Windows 10/11

(Installation on virtual machines is not offically supported ).
CPU:
2.2 GHz or faster (recommended almost 2.5 GHz or more) 32-bit (x86) or 64-bit (x64) processor (64-bit recommended)

RAM:
Minimum (at least 8 GB recommended)
DISK SPACE:
4 GB of free space
VIDEO CARD:
For optimum performance, it is recommended to use machines with a recent dedicated video card nVidia or AMD
